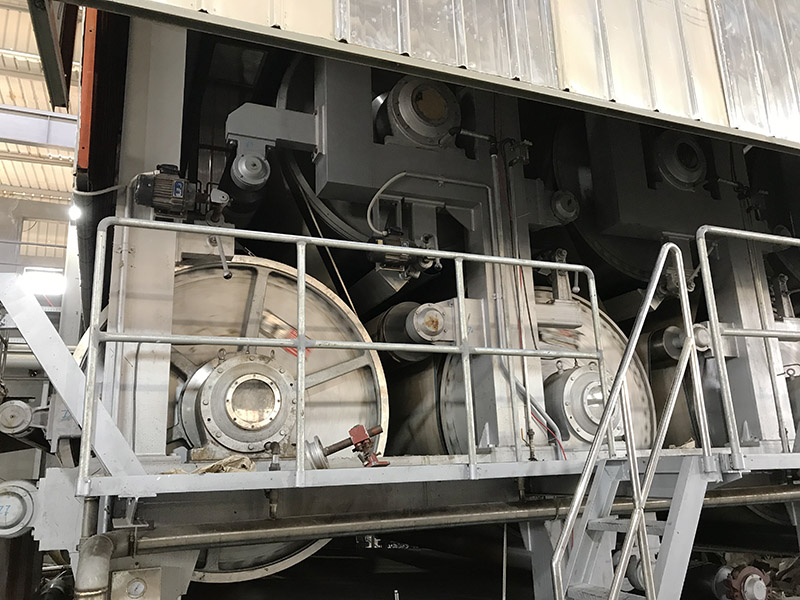

4000 Fully Automatic Double Wire Test Liner Paper and Pulp Making Machinery With Material Of Virgin Pulp, Waste Recycle Carton Box, etc. The Top Layer Is White Paper From Virgin Pulp or White Waste Paper.
Shipping Port :
QingdaoLead Time :
4 MonthsWeight :
700-1500TMin. order :
1 SetTest Liner Paper Machine model
|
Paper Output |
Test Liner Paper With Jumbo Roll |
|
Trimmed Width |
2200-5200 mm |
|
Paper Width On Pope Reel |
2200-5200 mm |
|
Machine Gauge |
3200-6300 mm |
|
Grammage |
80-160 gsm |
|
Design Speed |
100-500 mpm |
|
Working Speed |
60-450 mpm |
|
Capacity |
20-500 tpd |
|
Drive Position |
Right Hand or Left Hand Machine |
Overview
This paper machine applies to make Test Liner paper with grammage 90-250gsm. The trimmed width on pope reel is 4000mm, working speed is 200-250m/min, capacity 150 tons per day, calculate at 24 hours. It could design with left-hand or right-hand type based on drive position.
Paper Machine Design
Design tension for felt is 4KN/m, working tension is 3KN/m.
Stock Preparation -- Approach System -- Air Cushion Headbox -- Double Wire -- Press Section -- Dryer Section -- Pope Reel -- Air Hood -- Rewinder -- Vacuum System -- Air Compressor -- Steam Condensate System
Concentration: 0.2-0.4%
Paper dryness out of wire part 13—18%, go into dryer cylinder 35—38%, at pope reel 90—92%.
Service and Team Work
Strict quality control department will conduct complete quality inspection, to make sure frame alignment, rubber roll coating and crown, and all parts are correct and perfect paking to deliver to our customer.
Before shipping we will assemble and test all parts in the pre-assembly workshop to ensure the alignment and integrity of the equipments, and complete all parts even nuts and bolts.
We will send engineer to customer paper mill to support on installation and machine test running, also will train the workers on opperation.
Turn-Key service is our advantage, we have professional design engineer, machnical engineer and production enginners all have rich experience on paper mill. We will give you profesional design of production line with good price and low investment.
